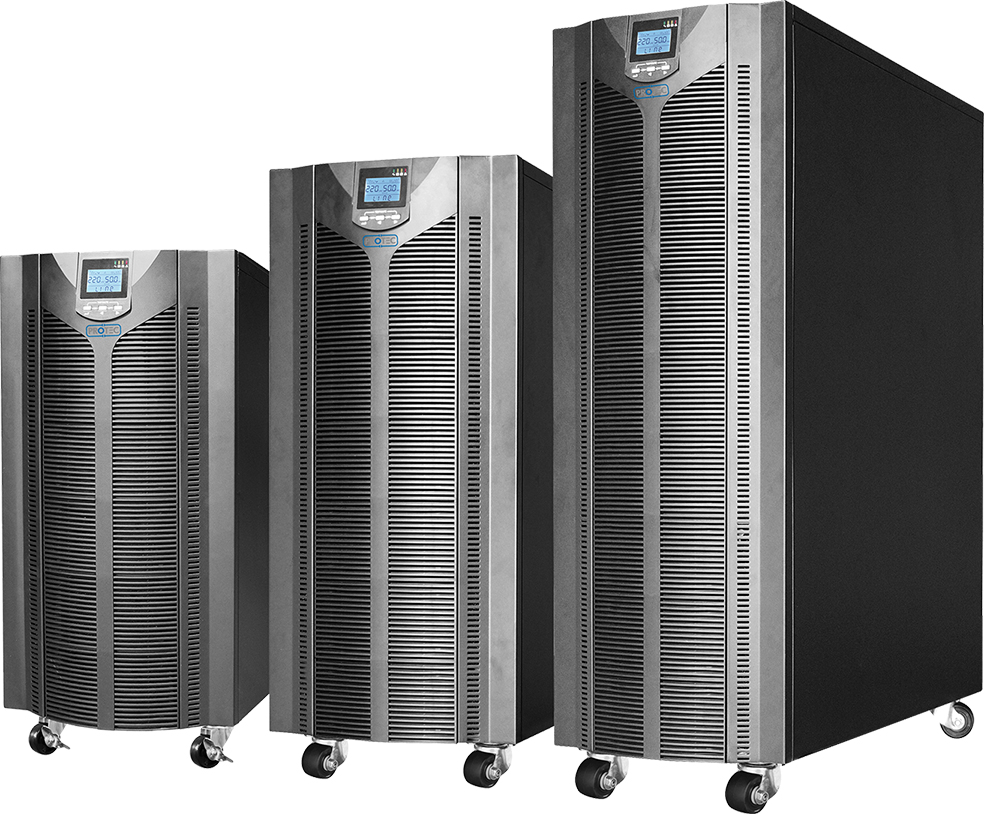

PROTEC SHD-P27
<< Back to Products
DSP Digital Control Technology
Active Power Factor Correction (APFC)
input power factor up to 0.99
Output Power Factor 0.9
Cold Start
Dual Input
Wide Input Voltage
range (190V ~ 485V)
Auto Sensing Frequency
50 / 60Hz Frequency Conversion Mode
Work Efficiency up to 98% in ECO Mode
Auto Control Fan Speed
when loads varies
Auto Power ON/OFF
according to the load capacity set by users
Flexible Battery Configuration
for using 14/16/18/20 pcs batteries
Compact Internal Layout
miniaturized the complete unit for small footprint
LCD+LED Display
multi-functional keys operation, friendly human-machine interface
Powerful Background Software
for parameters configuration and online updating
Doubling the Battery Charging Speed
90% capacity restored in 4 hours (standard model UPS)
Linear Derating in Low Voltage Input
reducing battery discharging times, extending the service life of battery
Advanced Battery Management (ABM)
automatic floating / equalizing charge control, charger dormancy control
Configurable Switching Time
from battery mode to mains mode when mains power is restored, reducing the impact on power grid or generator
Effective Software and Hardware Protection Function
powerful self-diagnostic function, abundant historical records
Standard Emergency Power Off (EPO)
Standard Maintenance Bypass
Standard RS232/USB Communication Port
Optional RS485 / SNMP / AS400 Communication Port and SMS Alarms
Optional N+X Redundancy Parallel up to 6 Units
Optional Battery Temperature Compensation
EMD environmental sensors
|
MODEL
|
Capacity |
27 KW / 30 KVA |
|
INPUT
|
Rated voltage |
360 V / 380 V / 400 V / 415 Vac |
Voltage range |
277 ~ 485 Vac (no derating)
190 ~ 277 Vac (linear derating between 50% and 100% load)
|
Rated frequency |
50 / 60 Hz (auto-sense) |
Frequency range |
40 ~ 70 Hz |
Power factor |
≥ 0.99 |
Total harmonic distortion (THDI) |
≤ 5% |
Bypass voltage range |
-40% - +15% (settable) |
|
OUTPUT
|
Voltage |
360 V / 380 V / 400 V / 415 Vac (settable) |
Voltage regulation |
± 1% |
Frequency |
45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode) |
Waveform |
Sinusoidal |
Crest factor |
3:1 |
Total harmonic distortion (THDV) |
≤ 2% (linear load); ≤ 5% (non-linear load) |
Transfer time |
Mains mode to battery mode: 0 ms; Inverter mode to bypass mode: 0 ms |
Inverter overload capability |
102% ~ 125%: transfer to bypass in 10 mins;
125% ~ 150%: transfer to bypass in 1 min;
> 150%: transfer to bypass in 0.5 s
|
Bypass overload capability |
102% ~ 125%: shut down in 20 mins;
125% ~ 150%: shut down in 2 mins;
> 150%: shut down in 1 s
|
|
BATTERIES
|
DC voltage |
Standard model: 240 VDC; Long time model: 192 VDC (168 V / 192 V / 216 V / 240 V optional) |
Inbuilt battery of standard model |
60x9 Ah |
Recharge time |
Standard model: 90% capacity restored in 4 hours;
Long time model: depend on the capacity of battery
|
|
SYSTEM
|
Efficiency |
≥ 93%, ECO mode 98% |
Display |
LCD + LED |
Alarm |
Battery mode, low battery, fans fault etc. |
Max. parallel numbers |
6 |
EMI |
IEC / EN62040-2 |
EMS |
IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (surge)
|
|
COMMUNICATIONS
|
RS232 / USB / RS485 / dry contacts |
Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
|
SNMP |
Power management from SNMP manager and web browser |
|
OTHERS
|
Humidity |
20 ~ 90% RH @ 0 ~ 40°C (non-condensing) |
Noise level |
≤ 65 dB (1m) |
Dimensions (mm) WxDxH |
350x655x732 (H)
350x785x1078 (S)
|
Packaged dimensions (mm) WxDxH |
472x780x920 (H)
472x910x1260 (S)
|
Net weight (kg) |
65 (H), 235 (S) |
Gross weight (kg) |
75 (H), 250 (S) |
