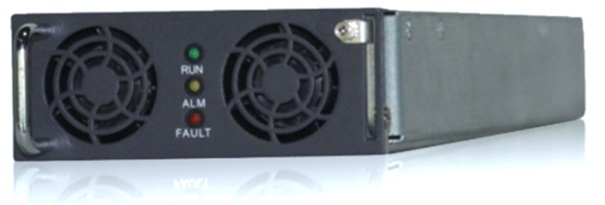

Telecom Rectifier
<< Back to Products
Wide input voltage: 85-300VAC
Wide temperature: -30°C-65°C
Hot-plug and easy maintenance
Full range of protection
Advanced battery management
Interface RS232/485/SNMP, Dry contact
AC Input |
Voltage |
85 - 300VAC |
Frequency |
45 - 65Hz |
Power Factor |
≥ 0.99 |
DC Output |
Voltage |
-42-58.5V |
Current |
100A / 1P x 2 + 63A / 1P x 4 + 32A / 1P x 2 ; 32A / 1P x 2 + 16A / 1P x 2 + 10A / 1P x 2 ; 63A / 1P x 2 + 32A / 1P x 2 ; 16A / 1P x 4 |
Ripple |
< 200mV peak to peak, < 2mV rms psophometric |
Load Regulation |
0.5% |
Current Sharing |
≤ 5% |
Parallel Rectifier Module |
1-5 / 1-4 |
Efficiency |
Rectifier: 97% |
Standard: 92% |
Protection |
Over Current |
Input: fuse; Output: fuse |
Over Voltage / Temperature |
Yes |
LED / Alarm |
Yes |
Environment |
Noise (1 meter) |
≤ 50dB |
Operation / Storage Temperature |
–30°C-+65°C/–40°C-70°C |
Relative Humidity |
10% - 95% (non-condensing) |
Mechanical W x D x H (mm) |
Subrack |
483 x 334 x 310 ; 483 x 371 x 222 |
Rectifier module |
103 x 231 x 84 ; 208 x 106 x 42 |
Weight (Kg) |
Subrack |
17.2 ; 13 |
Rectifier module |
2.4 ; 1.7 |
